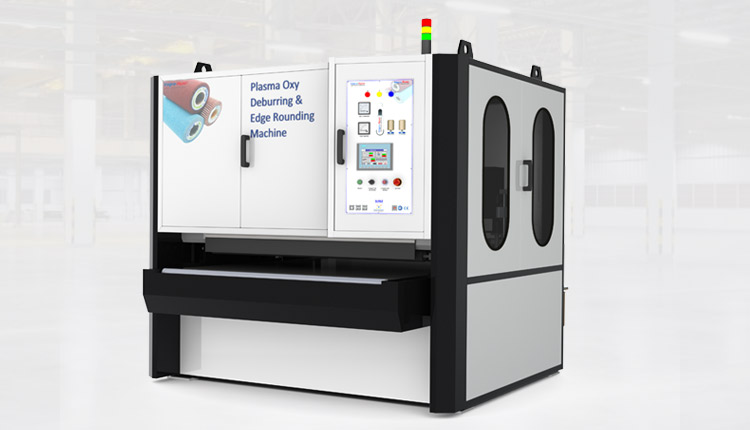

Valgro-De-Slagger Series Machine ideal for Slag & Dross Removal from plasma and gas cut parts and replace chipping and Manual grinding operation. Valgro India set benchmarks in innovative sheet metal processing through highly effective. Using only one work process, it is ideal for two-sided deburring and edge rounding of punched, laser, and high-definition plasma cut workpieces. It removes plasma arc efficiently, saving up to 60% of operational costs.
-
Overview
A plasma gas cut parts deburring machine is made for uniform sanding on all edges, leaving a fine scratch pattern on the surface. Valgro De-Slagger Series is suitable for class 4 and 5 burrs, including dross and slug. It is fully automated to deburr all edges without any hassle. It consists of a multi heads deburring and sanding station, the heads spin around to create the edge radius on metal parts. Different brush grits combination is also possible to operate different surfaces of the parts.
-
Features
Features
- Removal of slag/dross on carbon steel in a single pass
- Deburring and Edge radius in a single receipt of a laser-cut part.
- Grinding and Calibration with a multi-head working system
- Multi-head deburring and Edge rounding station
- Sturdy and latest technological System
- Dry operation dust extraction system
- Adjustable Pressure on each station
- Easy abrasives brush replacement
- Adjustable conveyor speed (belt/roller)
- Emergency security switch
- Reversal conveyor speed for emergency control
- Avoid traditional chipping process or power tool operation.
- 10-time Faster work
- Uniform slag removal entire surface
- Reduce workforce
-
Technicality
Model – De-Slugger SLR 24-3 SLR 24-4 SLR 50-3 SLR 50-4 SLR 62-4 Head Type Belt / Roller Brush / Disc Brush D + B + B D + B + B + D D + B + B D + B + B + D D + B + B + D Work Surface Top Side Top Side Top Side Top Side Top Side Process: Wet / Dry Dry Dry Dry Dry Dry Work head 3 4 3 4 4 Application Slug / Dross Removal + Sanding + Deburring + Edge Rounding Finish Achieved - - - - - Burr Classification Class 4 & 5 Class 4 & 5 Class 4 & 5 Class 4 & 5 Class 4 & 5 Max Width 600 600 1250 1250 1550 Min. Length 100 100 100 100 100 Min. Max Thickness 3-100 3-100 3-100 3-100 3-100 Weight of capacity kg 100kg 100kg 300kg 300kg 500kg Drum Diameter 150 180 150 180 180 Brush Diameter 150 / 180 / 200 150 / 180 / 200 150 / 180 / 200 150 / 180 / 200 150 / 180 / 200 Abrasive belt Size 650mm x 2200mm 650mm x 2200mm 1300mm x 2200mm 1300mm x 2200mm 1650mm x 2200mm Brush Action R = Rotate / O = Oscillate R + O R + O R + O R + O R + O Conveyor Type R= Roller / B = Belt Belt Belt Belt Belt Belt Conveyor Bed Magnate Magnate Magnate Magnate Magnate Conveyor speed MPM Min / Max 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 Machine weight 1800 2500kg 2500kg 3500kg 4200kg Dust collector Suggestion DCS-5 Auto DCS-5 Auto DCS-5 Auto DCS-5 Auto DCS-5 Auto Electrical parameters The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection. -
Applicatons
- Slag Removal
- Deburr and sand a radius to the sharp edge on cut out parts
- Uniform is sanding on all trims, leaving a delicate scratch pattern on the surface.
- Deburring all edges in one pass on laser cut or stamped parts
- Calibrating or keying carbon, rubber, wood, or other soft materials.
- Grain finishing and stock removal of any material.
-
