SAMARTH – Side edge Deburring and Finishing machine is designed to remove micro metal burr formations after cutting processes like shearing, punching, etc. It especially works on the metal side and edges deburring for removing burrs created from sheet external perimeter. This deburring is required in some cases for aesthetic reasons, while some industrial units utilize it to round the edges for safety reasons.
-
Overview
Valgro India offer flat sheet / Flat bar side grinding machine. Made for stainless steel bars and plates side polishing and deburring on this video it is demonstrated side grinding with 100mm width 10mm thick Flat sheet.
-
Features
Features
- Two Deburring wheel station is working on from side
- Top and side edge deburring by abrasive deburring wheel
- Tilt the sheet for another side deburring.
- Sheet Auto Feed Conveyor Transport system
- Easy abrasives tools replacement
- Emergency security switch
- Reversal conveyor speed for emergency control
Advantage compared to the traditional deburring process
- Avoid unhealthy position compared to the traditional operation No Physical Strain of worker by vibrations and flying spark, Employee do not suffer under flying spark, dust and noise. Unskilled labor run this machine Save money and time by less down time
-
Technicality
Model Edge 9 Edge 11 Edge 21 Head Type Wheel / Disc Wheel / Disc Wheel / Disc Work Surface Wall / Edge Wall / Edge Wall / Edge Work Head 1 2 2 Process: Wet / Dry Dry Dry Dry Application Burr Removal Micro Joint + Edge Burr Removal Finish Achieved Smooth edge Smooth edge Smooth edge Type of Material Sheet Metal Smooth edge Smooth edge Min. Max Width 300 600 600 Min. Length 100 300 300 Min. Max Thickness 0.8 to 3mm 0.8 to 3mm 0.8 to 3mm Brush Diameter 150mm 150mm 150mm Brush Action R = Rotate / O = Oscillate R R R Conveyor Type R= Roller / B = Belt Manual Belt / Roller Belt Conveyor speed Min / Max - MPM Manual Feed 0.5 - 10 0.5 - 10 Dust Extraction : Valgro-Duklean DCS-1 DCS-3 DCS-5 Electrical parameters The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection.
All Dimensions in MM -
Applicatons
- Sheet Metal Processing
- Side Edge wall grinding
- Top Shear edge deburring
- Micro Joint Removal
-

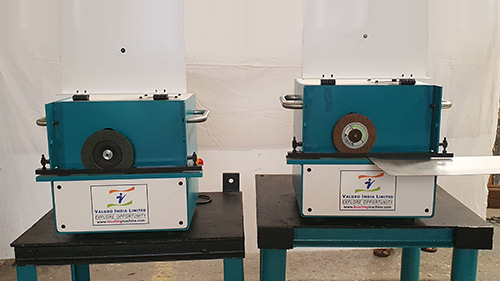

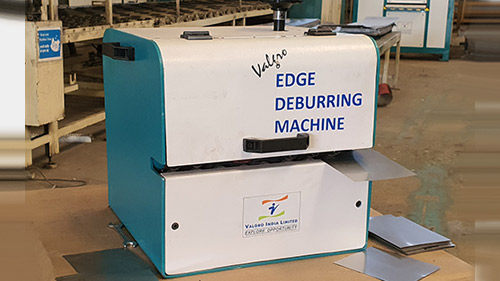

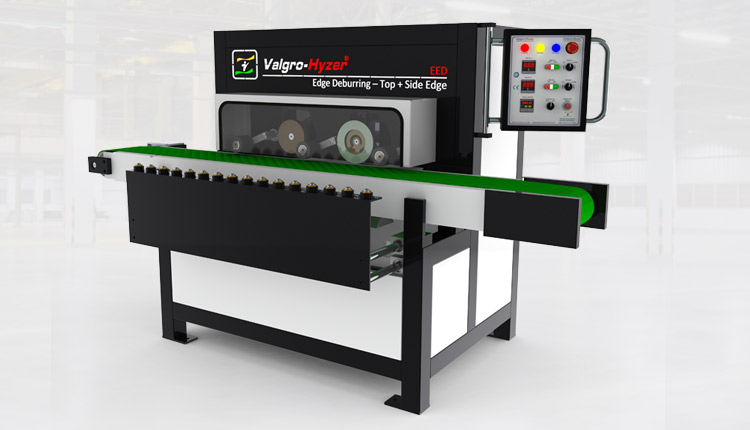

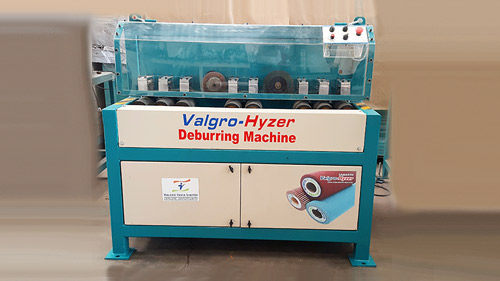

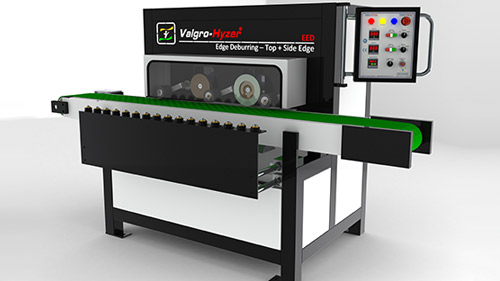

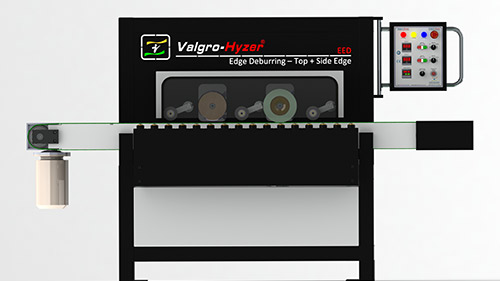

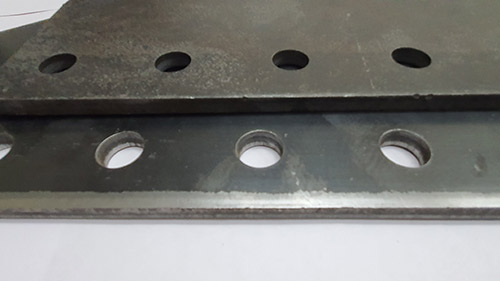

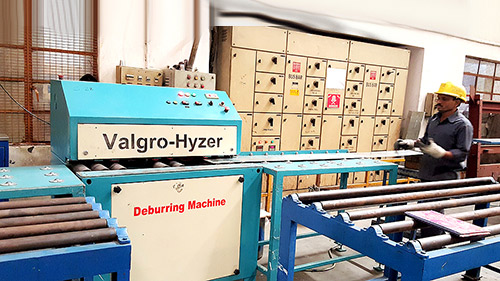

Gallery
