Deburring + Roughening + Edge Rounding

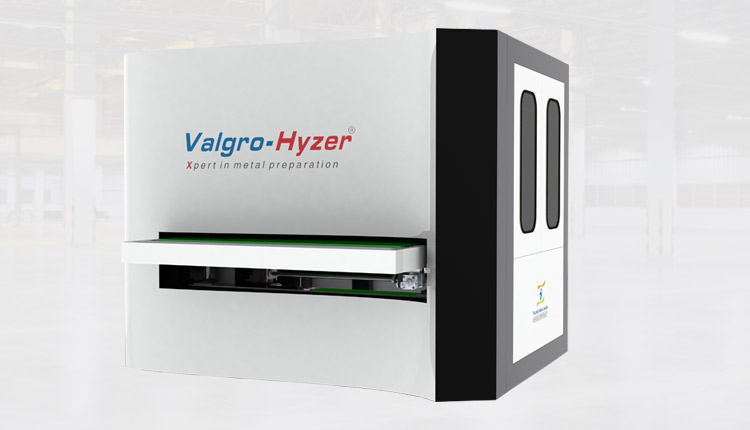

The Valgro Samarth Disc Expert Series Precision Deburring Machine is suitable for surfacing of nonferrous and ferrous sheet metals parts. Valgro brings to you the expertise in dealing with every surface , and offering cutting edge deburring technology with in-depth process knowledge. The range of Valgro Deburring Machines and Deburring Solutions extends from Machined Automotive Components to Punched and Fine Blanked Parts.

  • Overview

    Valgro Samarth Series Deburring & Finishing machine provides a uniform roughening brush effect for batter powder coating. This machine is highly productive than a conventional deburring system, can eliminate manual deburring work. Valgro has developed various models for sheet Deburring in configuration of flexibility and lower operating costs. The burr can vary when punching or laser cutting your materials. Burrs created via laser cutting and punching adhere to the material in various strengths. Therefore, finding a comprehensive deburring solution is crucial.

  • Features

    Features

    • Working thickness from 0.5mm to 3mm
    • Single and multi-station Deburring machine
    • Dry process is Clean and environment friendly
    • Low Space requirement
    • Save money and time
    • Reduce labor and manpower cost
    • Avoid less handling scratch due to in-house deburring
  • Technicality
    Model DEB 06 DEB 14 DEB 32 DEB 50 DEB 62
    Head Type Disc Disc Disc Disc Disc
    Work Surface Top Side Top Side Top Side Top Side Top Side
    Process: Wet / Dry Dry Dry Dry Dry Dry
    Work head 2 2 2 2 2
    Application Deburring + Edge Rounding + Roughening
    Finish Achieved Orbital Vibration Orbital Vibration Orbital Vibration Orbital Vibration Orbital Vibration
    Burr Qualification Class 1 & 2 Class 1 & 2 Class 1 & 2 Class 1 & 2 Class 1 & 2
    Type of Material Carbon steel, Aluminum CR Sheet
    Min. Max Width 50 -125mm 50-200mm 100-800mm 100-1250 100-1550
    Min. Length 50 100 100 100 100
    Min. Max Thickness Jan-50 1 – 50 1 to 100 1 to 100 1 to 100
    Weight of capacity -kg 50 50 100 100 100
    Brush Diameter 150 / 200 350 150 / 200 150 / 200 150 / 200
    Brush Action - R / O
    R = Rotate / O = Oscillate     		R R R + O R + O R + O
    Conveyor Type
    R= Roller / B = Belt     		Belt Belt Belt Belt Belt
    Part Holding Magnate / Vacuum Magnate / Vacuum Magnate / Vacuum Magnate / Vacuum Magnate / Vacuum
    Conveyor speed
    Min / Max - MPM     		0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10
    Dust Extraction System
    Model No     		DCS-3 DCS-3 DCS-3 DCS-5 DCS-5
    Electrical parameters The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection.
  • Applicatons

    • Panel builder
    • Sheet metal fabricator
    • Automobiles
    • Railways
    • Instrumentation
    • Laser cut shop
