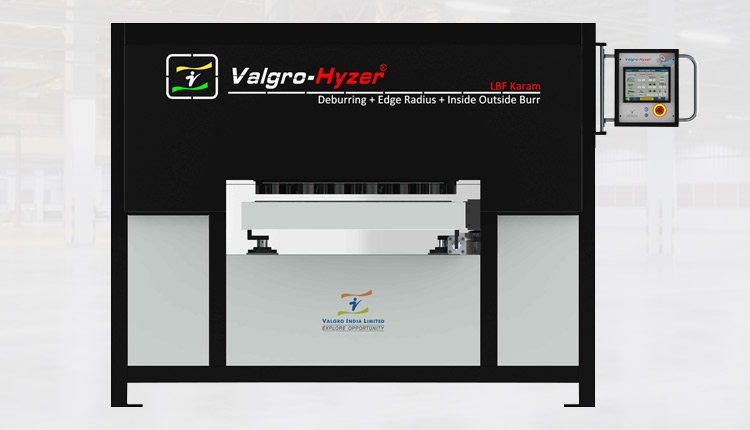

SAMARTH DB Series Flat metal sheet parts deburring is designed for cleaning, deburring, and polishing sharp corners, hole, edges, and irregular parameters of the metal sheet parts without damaging the surface. Flat metal sheet parts deburring works with flexibility, which facilitates lower operational costs of your manufacturing unit.
-
Overview
Valgro flat metal sheet parts deburring offers smooth removal of micro scratch, acid layers, and oxide from the surface of the metal sheets. Valgro brushing & deburring machine operation is a safe and economical way. This machine is highly productive than a conventional deburring system, can eliminate manual deburring work. Valgro has developed various models for sheet Deburring in configuration of flexibility and lower operating costs. Sheet Deburring machines are available for both dry and wet processing.
-
Features
Features
- Multiple thicknesses from 0.8mm to 3mm
- Suitable for different metals including stainless steel, zinc, aluminum, and others
- Eco-friendly dry process
- Reduce labor and operational cost
- Contactless handling for avoiding scratches
- Can be integrated into current production process
- Deburr of small and large parts together
- Compact design for small space units
Benefits
- Thin part can be deburring
- No heat generation – No deformation
- Faster production – saving time
- Clean and Green environment
- Low Space requirement
- Save money
- Reduce labor and manpower cost
-
Technicality
Model DB-24 DB-24 HD DB 32 DB 32 HD DB 50 HD DB 62 HD Head Type Roller Brush Roller Brush Roller Brush Roller Brush Roller Brush Roller Brush Work Surface Top Side Top Side Top Side Top Side Top Side Top Side Work Head 1 1 1 1 1 1 Process: Wet / Dry Dry Dry Dry Dry Dry Dry Application Deburring + Finishing + Cleaning Finish Achieved Brush # 4 Brush # 4 Brush # 4 Brush # 4 Brush # 4 Brush # 4 Burr Class Qualification Class 1 & 2 Class 1 & 2 Class 1 & 2 Class 1 & 2 Class 1 & 2 Class 1 & 2 Type of Material Aluminium / Sgtainless Steel / Brass / Copper Min. Max Width 25-600 25-600 25-800 25-800 400-1250 400-1550 Min. Length 175 275 275 350 800 800 Min. Max Thickness 0.8 to 3 0.8 to 3 0.8 to 3 0.8 to 3 0.8 to 3 0.8 to 3 Brush Diameter 125 225 225 300 350 350 Brush Action Rotate / Oscilate R + O R + O R + O R + O R + O R + O Conveyor Type R= Roller / B = Belt Roller Roller Roller Roller Roller Roller Conveyor speed Min / Max - MPM 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 0.5 - 10 Dust Extraction Model No Duklean DCS-3 Duklean DCS-3 Duklean DCS-3 Duklean DCS-3 Duklean DCS-5 Duklean DCS-5 Electrical parameters The integrated frequency converter allows the machine to work worldwide with all power supply systems and enables smooth start and enhanced motor protection. -
ApplicatonsDB SAMRTH Fabrika series Sheet Deburring machine is widely accepted at sheet metal fabrication Industries
- Kitchen Equipment Mfg.
- Dairies and Breweries Process machinery Mfg.
- Pharma & Food Process Machinery Mfg.
- Architect and Building construction (A.B.C. Sector)
- Lift and elevator manufacturer.
- Stainless Steel Tube, Rod and Flat bar user, Mfg.
- Automobiles & Public Transport
- Railways
- Instrumentation
-
